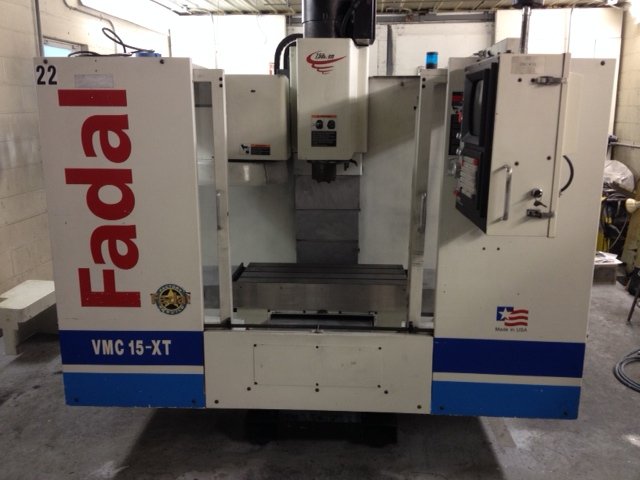

1998/2002 Fadal VMC 15XT

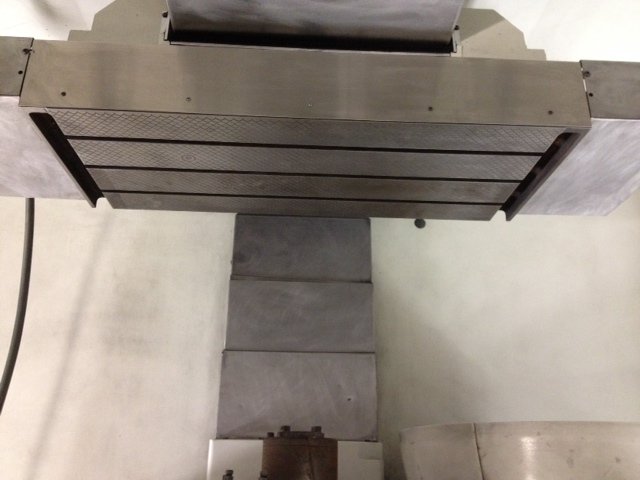

|Table Size||38″ x 16″|
|T-Slots||3 x .562″ x 4.33″|
|Cutting Feed Rate||.01-250 IPM|
|Rapid Feed Rate (XYZ)||400 IPM|
|Max. Weight on Table||1,500 lbs|
|Axis Drive Motor (XYZ)||DC|
|X Axis Travel||30″|
|Y Axis Travel||16″|
|Z Axis Travel||20″|
|Spindle Drive Motor HP||15 HP|
|Spindle Speed||10-7500 RPM|
|Spindle Taper||CAT 40|
|ATC, Number of tools||21|
|Machine Width and Depth||75″ W x 77″ D|
|Machine Maximum Height||101″|
|Machine Weight||5,800 Lbs|
|Air Pressure Requirements||120 PSI|
|Power Requirements||190-260 VAC 3 Phase|
Included options: Rigid Tapping
This machine has been 100% inspected, cleaned and certified by our Service Technicians.
The paint on this machine is pristine, the machine previously came out of a shop that only cut light material, so the paint is still like it was the year it was manufactured. This is a very nice addition to someone’s shop that has a need for a small footprint machine that still has all the capabilities of a Larger machine.
Any questions on the machine and/or pricing, please contact us.
